120kW Mobile EV Charging Stations

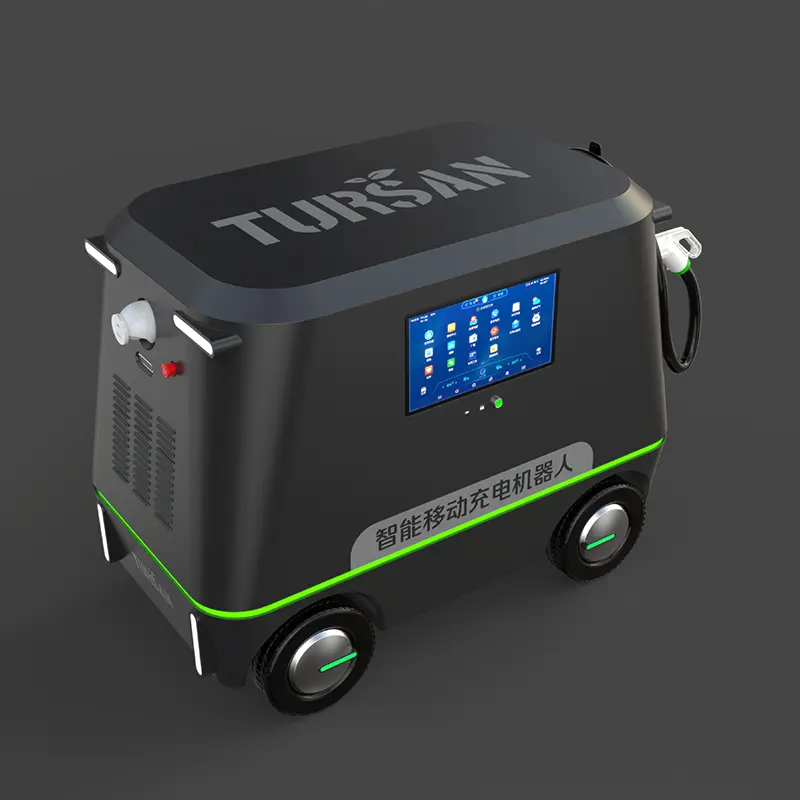

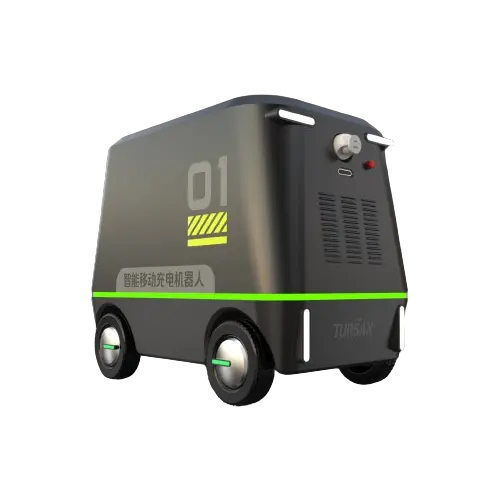

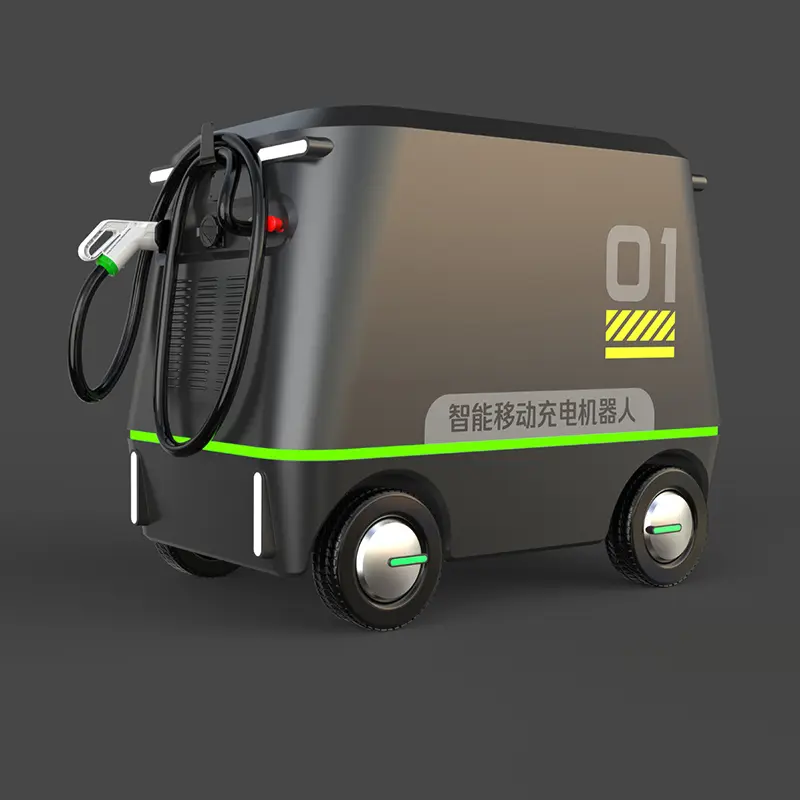

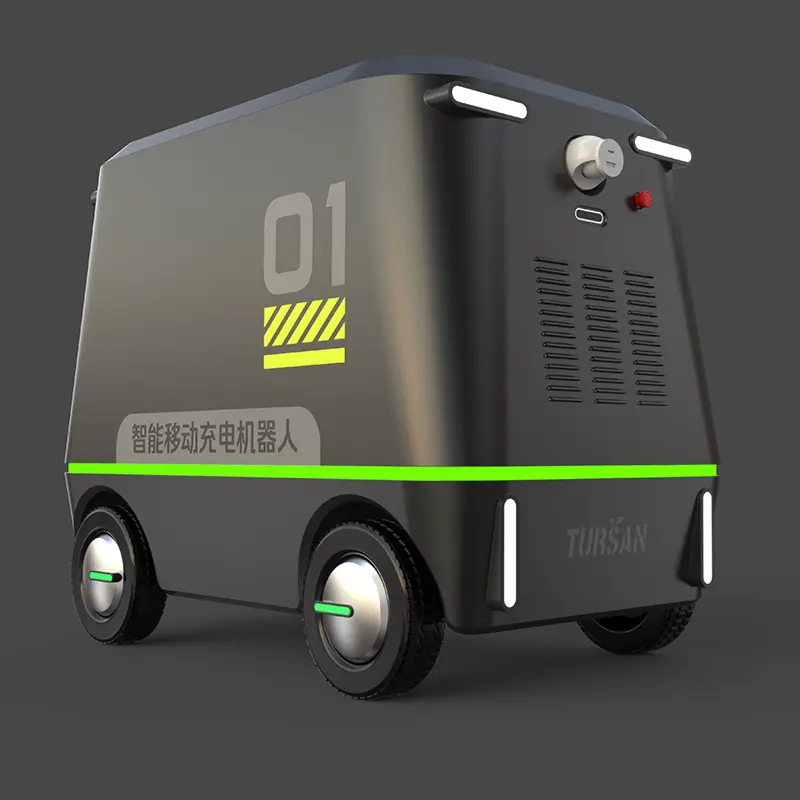

120kW Mobile EV Charging Stations

Intelligent Mobile EV Car Charging Robot

  • Fully automated
  • APP monitoring
  • Fast charging mobile power for cars

Breakthrough Tech,Free your hands

Battery Manage System
Overcurrent Protection
Over-discharge Protection
Low power Protection
High-Low Temp Protection
Overload Protection
Short circuit Protection
Disconnection Protection
Get an up-to-date quote with additional free information to download!

Interface Support

EV Charging Port

Usage Flow

1
Check charging cart status on screen
2
Insert the charging gun into the vehicle
3
Tap "START" on the screen orUse the App to start charging
4
It's charging.
5
When charging is complete.Please click "STOP" on the screenor use the app to end charging
6
Put the charging gun back in place

Core Advantages

Simple to use

Out of the box, no installation is required and the embedded display provides you with digital operation.

off-grid charging

Freedom of charging, no reliance on traditional power infrastructure, charge your vehicle at any time.

fast charging

Up to 200kW fast charging power, built-in high-efficiency pure sine wave inverter, no need to wait for a long time.

Clean and quiet

Provides a quiet charging experience and uses eco-friendly batteries to supply you with clean and non-polluting electrical energy.

IoT Support

IoT support is provided so you can control it remotely using the app or operate the device using the remote control.

Multi-functional use

Not limited to usage scenarios, you can power any device anywhere, compatible with 99% of electric vehicle interfaces.

Parameters

Rated Power120kW
Capacity125kWh
Battery TypeLiFePO4 Battery
Mobility ModeLow-Speed Autopilot / Manual Remote Control
Communication Mode4G / 5G
Payment MethodsAPP、QRCode、OCCP1.6
Robot Charging Equipment20kW (Max.30kW)
Climbing Degree15
Display21.5-inch LCD Screen, Resolution 1920*1080
Charging Output Voltage150~750V
Charging Constant Power Output Voltage300~750V
Maximum Charging Output CurrentDC 250A
Input VoltageDC 200 ~ 1000V / AC 380V (Optional)
SOC(10%~90% Charging Time)≤60 Minutes(25℃)
Operating Temperatrue-20℃~55℃
Charger Output InterfaceStandard DC Charging Interface
Charger Input InterfaceStandard DC Charging Interface
Number of Charging Gun CablesTwo
Thermal Management ModeAir-cooled
Lifecycles6000+
Waterproof GradeIPX4
Weight≤ 1300Kg(2866.00lbs)
Dimensions(L×W×H)1662×912×1289mm

Certificate

Pre-integrated UN38.3, MSDS, UL, CE, FCC, IEC, RoHS and other certifications to shorten market access cycles.
MSDS
UN38.3
UL
UL
Identification and Classification Report for Air Transport of Goods
Report for Safe Transport of Goods
Material Safety Data Sheet
UN38.3

About us

Founded in 2016 · Headquartered in China

A decade of energy storage manufacturing excellence.

Who We Are

Residential Solar Energy Storage Battery Solution Manufacturer

TURSAN is a high-tech enterprise integrating R&D, manufacturing, and global sales of lithium battery–based energy storage systems. Founded in 2016, we operate a 20,000+m² production facility producing reliable LiFePO4 power solutions for residential, commercial, and outdoor applications.



Through a strategic partnership with BYD, we co-manufacture larger-capacity, safer, and more environmentally friendly portable power stations and home battery backups. Today we serve global brand owners, distributors, EPC contractors, and project developers in over 60 countries — saving OEM clients up to 20% in annual sourcing cost while meeting the toughest international safety standards.

Home Battery Backup
Portable Power Station
Industrial BESS
Mobile EV Charging
LiFePO4 Battery
Off-Grid & Hybrid Inverter

OEM&ODM Process

Phase 1

Confirm Requirements and Finalise the Solution

We collect all customer specifications: voltage, capacity, dimensions, communication protocol, etc. Then we decide if it is a pure OEM job (build exactly to your drawings) or an ODM job (we provide the design). We issue a clear BOM (bill of materials) and 2D/3D drawings for both parties to sign off, avoiding any later misunderstandings.

Phase 1
Phase 2
Phase 2

Procurement and Incoming Inspection

We purchase all materials according to the BOM: cells, enclosure, brackets, screws, wiring, BMS boards, etc. When goods arrive, we do sampling or 100% inspection. For cells, we measure voltage, internal resistance and check appearance. For structural parts, we check dimensions and hole sizes. Any non‑conforming items are rejected and never go into our warehouse.

Phase 3

Cell Sorting and Matching

We group cells from the same batch by voltage and internal resistance values. We then match cells with the closest parameters into one set (for example, if a string uses 4 cells, the voltage and resistance differences among those 4 must stay within our set limits). This directly affects how long the battery pack will last without performance decay.

Phase 3
Phase 4
Phase 4

Laser Welding and Module Assembly

We fix cells into holders, then laser‑weld the tabs (connectors). We do pull‑force tests on sample weld spots to check strength. After that, we fasten the welded sub‑modules into the enclosure or tray, using torque‑controlled tools to apply the correct tightening force.

Phase 5

BMS Installation and Wiring Connection

We mount the main BMS and slave boards in their designated positions, then plug in all voltage sampling wires and temperature sensors. We always have a two‑person verification of the wiring sequence – this prevents reverse connections that could burn the boards when we power up.

Phase 5
Phase 6
Phase 6

First High‑Voltage Safety Test

We apply high voltage between the positive/negative terminals and the enclosure to measure insulation resistance and withstand voltage. We check for any leakage or breakdown. If this test fails, the module goes back for rework immediately – it does not move forward.

Phase 7

High‑Temperature Standing and Self‑Discharge (K‑Value) Check

We place the modules in a 45 °C room for 24–48 hours. We measure voltage before and after the standing period, then calculate the daily voltage drop (K‑value). Units with excessive drop are rejected because they indicate internal micro‑shorts that could cause early failure later.

Phase 7
Phase 8
Phase 8

Charge/Discharge Aging and Capacity Calibration

We connect the modules to charge/discharge equipment and run several full cycles at the current specified by the customer. During the process, we record actual discharge capacity, charge/discharge efficiency, and the temperature/voltage differences among individual cells. If all data stay within our acceptance limits, we calibrate the final rated capacity. If not, we isolate and analyse the failed units.

Phase 9

Final Inspection, Labelling and Packaging

We re‑measure total voltage, internal resistance and insulation performance. We check appearance for scratches, gaps, or damaged screws. We attach a permanent nameplate (with serial number), UN38.3 hazardous‑goods label, and all required operation warning labels. Then we package the battery with foam or cardboard for shock protection, as per customer requirements, and record the final weight.

Phase 9
Phase 10
Phase 10

Shipment and Document Handover

We verify the shipping quantity, address and consignee. We prepare all accompanying documents: factory test report, MSDS, UN38.3 test summary, and transport condition certificate. We arrange pickup with our logistics partner, and after dispatch we send the tracking number and estimated arrival time to the customer.
