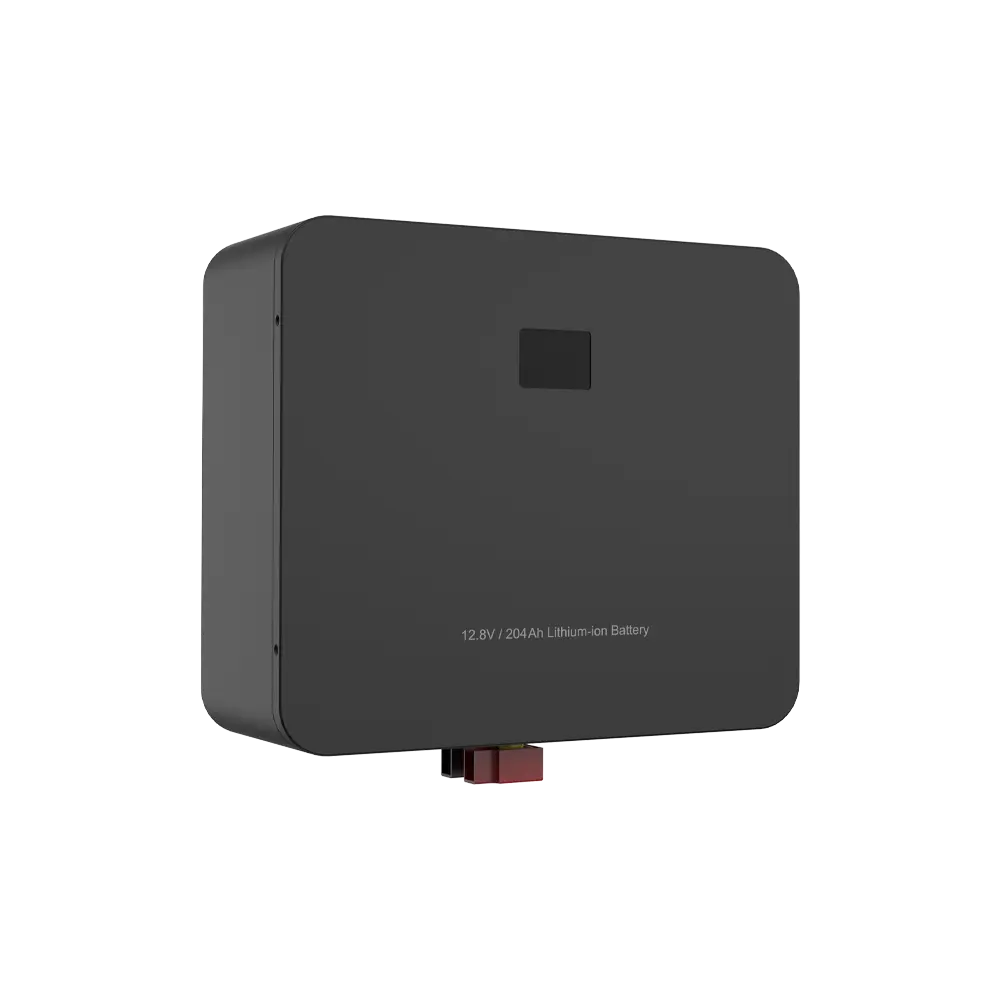

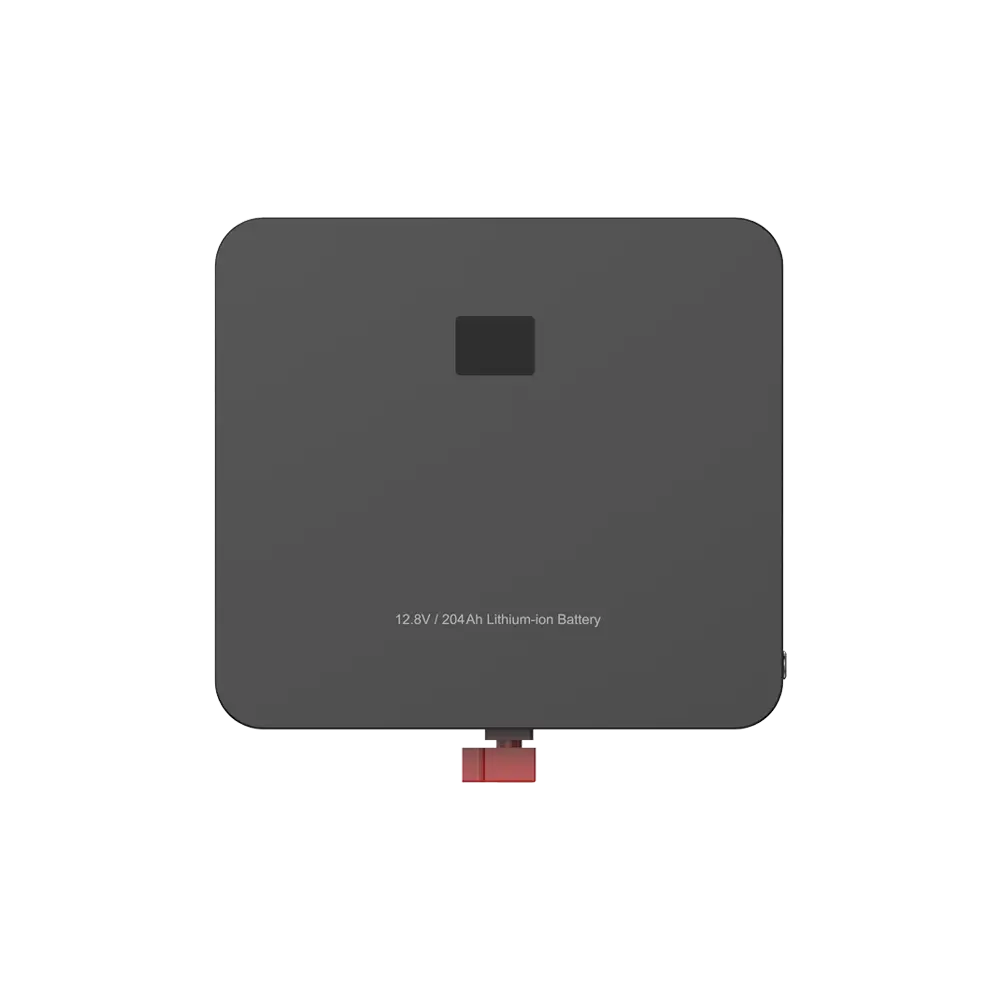

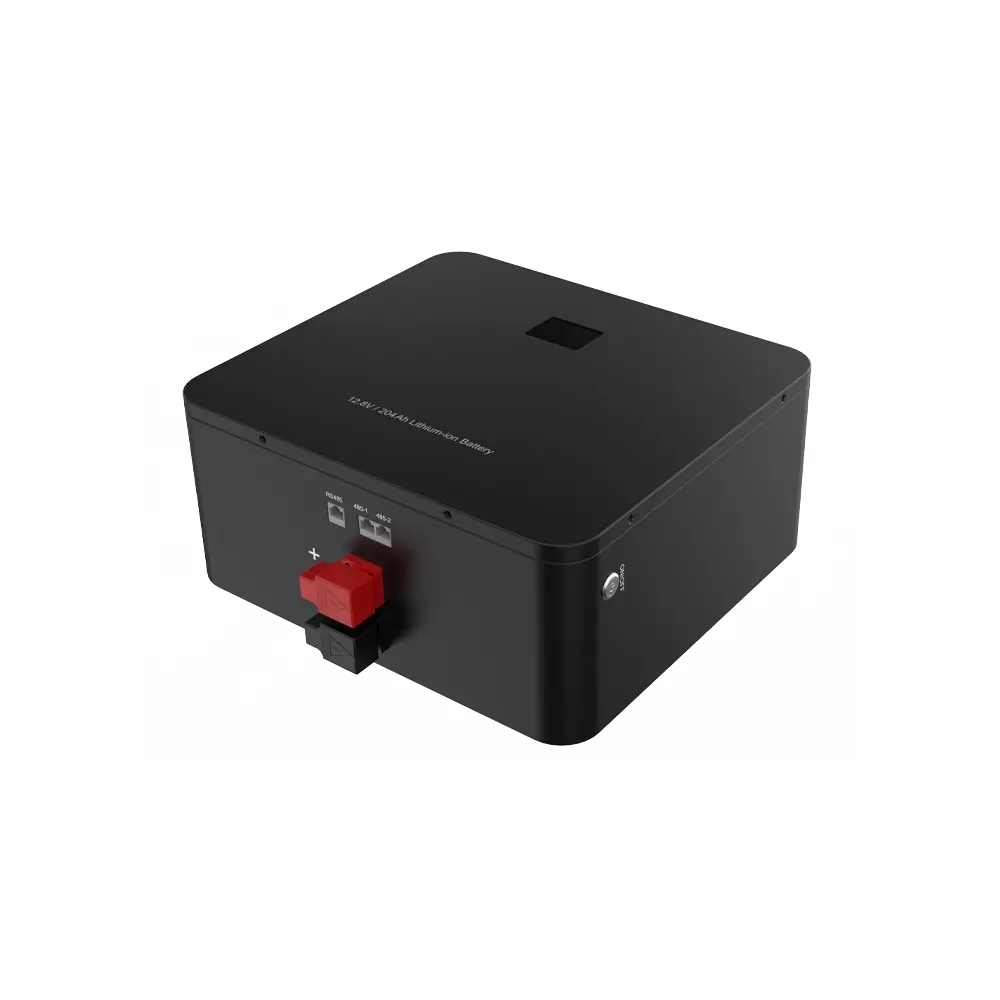

12.8V200Ah Wall Mounted LiFePO4 Battery
The 12.8V 200Ah Wall Mounted LiFePO4 Battery is a compact, high-performance 2.5 kWh lithium battery designed for residential, commercial, and solar energy storage applications. Built with BYD LiFePO4 cells, this battery delivers long cycle life, stable performance, and intelligent monitoring in a durable wall-mounted enclosure.
With a total energy capacity of 2560Wh, this 12.8V 200Ah LiFePO4 battery is ideal for backup power, solar self-consumption, telecom systems, RVs, and off-grid or hybrid energy solutions where space efficiency and reliability are critical.
Get an up-to-date quote with additional free information to download!
Key Features
- High Energy Density (2560Wh)Delivers reliable power in a compact wall-mounted design, commonly searched as a 2.5 kWh lithium battery.
- Premium BYD LiFePO4 CellsLong lifespan with ≥6000 cycles @ 70% EOL, far exceeding traditional lead-acid or AGM batteries.
- Smart BMS with Bluetooth & RS485Advanced battery management system supports real-time monitoring, protection, and diagnostics via mobile app or system integration.
- Wall-Mounted Metal HousingSheet metal enclosure offers improved waterproof and dustproof protection while saving floor space.
- Wide Device CompatibilityWorks seamlessly with most inverters, chargers, and solar systems using 12.8V lithium battery 200Ah configurations.
- Fast Installation & CustomizationDesigned for quick deployment, with OEM/ODM customization available directly from the manufacturer.
Core Advantages
Quick Installation
Wall-mounted structure significantly reduces installation time and wiring complexity.
Smart Battery Management System
Built-in BMS protects against overcharge, over-discharge, short circuit, and temperature extremes, with real-time app monitoring.
High Cycle Life
Using premium LiFePO4 chemistry, this 12.8V 200Ah lithium battery is designed for long-term daily cycling.
Optimized Internal Structure
High-density cell arrangement maximizes usable energy within a compact footprint.
Deep Customization Support
OEM/ODM services available, including branding, communication protocols, and enclosure options.
99.99% Device Compatibility
Standard voltage and communication interfaces ensure compatibility with most 12V deep cycle battery systems.
Applications (Typical Use Cases)
- Off-grid and hybrid solar systems
- Residential solar energy storage
- Telecom backup power
- RV, marine, and mobile power systems
- Small commercial and industrial backup solutions
Parameters
| Shell Material | Sheet Metal |
| Rated Capacity | 2560Wh |
| Battery | BYD LiFePO4 |
| Lifespan | ≥ 6000 Cycles @70%EOL |
| Nominal Capacity | 200Ah |
| Nominal Voltage | 12.8V |
| Communication Mode | Bluetooth |
| Operating Temperature | -10℃~60℃ |
| Dimensions | 315×350×155mm |
| Weight | 21.65Kg |
Certificate
About us
A decade of energy storage manufacturing excellence.
Residential Solar Energy Storage Battery Solution Manufacturer
TURSAN is a high-tech enterprise integrating R&D, manufacturing, and global sales of lithium battery–based energy storage systems. Founded in 2016, we operate a 20,000+m² production facility producing reliable LiFePO4 power solutions for residential, commercial, and outdoor applications.
Through a strategic partnership with BYD, we co-manufacture larger-capacity, safer, and more environmentally friendly portable power stations and home battery backups. Today we serve global brand owners, distributors, EPC contractors, and project developers in over 60 countries — saving OEM clients up to 20% in annual sourcing cost while meeting the toughest international safety standards.
OEM&ODM Process
Confirm Requirements and Finalise the Solution
We collect all customer specifications: voltage, capacity, dimensions, communication protocol, etc. Then we decide if it is a pure OEM job (build exactly to your drawings) or an ODM job (we provide the design). We issue a clear BOM (bill of materials) and 2D/3D drawings for both parties to sign off, avoiding any later misunderstandings.
Procurement and Incoming Inspection
We purchase all materials according to the BOM: cells, enclosure, brackets, screws, wiring, BMS boards, etc. When goods arrive, we do sampling or 100% inspection. For cells, we measure voltage, internal resistance and check appearance. For structural parts, we check dimensions and hole sizes. Any non‑conforming items are rejected and never go into our warehouse.
Cell Sorting and Matching
We group cells from the same batch by voltage and internal resistance values. We then match cells with the closest parameters into one set (for example, if a string uses 4 cells, the voltage and resistance differences among those 4 must stay within our set limits). This directly affects how long the battery pack will last without performance decay.
Laser Welding and Module Assembly
We fix cells into holders, then laser‑weld the tabs (connectors). We do pull‑force tests on sample weld spots to check strength. After that, we fasten the welded sub‑modules into the enclosure or tray, using torque‑controlled tools to apply the correct tightening force.
BMS Installation and Wiring Connection
We mount the main BMS and slave boards in their designated positions, then plug in all voltage sampling wires and temperature sensors. We always have a two‑person verification of the wiring sequence – this prevents reverse connections that could burn the boards when we power up.
First High‑Voltage Safety Test
We apply high voltage between the positive/negative terminals and the enclosure to measure insulation resistance and withstand voltage. We check for any leakage or breakdown. If this test fails, the module goes back for rework immediately – it does not move forward.
High‑Temperature Standing and Self‑Discharge (K‑Value) Check
We place the modules in a 45 °C room for 24–48 hours. We measure voltage before and after the standing period, then calculate the daily voltage drop (K‑value). Units with excessive drop are rejected because they indicate internal micro‑shorts that could cause early failure later.
Charge/Discharge Aging and Capacity Calibration
We connect the modules to charge/discharge equipment and run several full cycles at the current specified by the customer. During the process, we record actual discharge capacity, charge/discharge efficiency, and the temperature/voltage differences among individual cells. If all data stay within our acceptance limits, we calibrate the final rated capacity. If not, we isolate and analyse the failed units.
Final Inspection, Labelling and Packaging
We re‑measure total voltage, internal resistance and insulation performance. We check appearance for scratches, gaps, or damaged screws. We attach a permanent nameplate (with serial number), UN38.3 hazardous‑goods label, and all required operation warning labels. Then we package the battery with foam or cardboard for shock protection, as per customer requirements, and record the final weight.
Shipment and Document Handover
We verify the shipping quantity, address and consignee. We prepare all accompanying documents: factory test report, MSDS, UN38.3 test summary, and transport condition certificate. We arrange pickup with our logistics partner, and after dispatch we send the tracking number and estimated arrival time to the customer.
Quality Control
Frequently Asked Questions (FAQ)
Q1: What is a 2.5 kWh battery?
A 2.5 kWh battery stores approximately 2.5 kilowatt-hours of energy. This model provides 2560Wh, making it suitable for small backup and solar storage systems.
Q2: How many kWh is a 12.8V 200Ah battery?
A 12.8V 200Ah LiFePO4 battery typically provides around 2.5–2.6kWh, depending on nominal voltage.
Q3: How long will a 2.5 kWh lithium battery last?
Runtime depends on load. For example, a 500W load can run for about 4–5 hours using a 2.5 kWh lithium battery.
Q4: What can a 12.8V 200Ah battery run?
A 12.8V 200Ah battery can power lights, routers, TVs, fans, refrigerators (DC or inverter-driven), and other essential loads.
Q5: Is this a deep cycle battery?
Yes. This is a deep cycle 12.8V 200Ah LiFePO4 battery, designed for repeated charge and discharge cycles.
Q6: Can a 12.8V 200Ah lithium battery run an air conditioner?
It can run a small or inverter-type AC for a limited time, depending on power draw and inverter capacity.
Q7: How many batteries do I need to run a house?
Most homes require multiple batteries. One 2.5 kWh battery is suitable for partial backup; full-house backup typically requires higher total kWh capacity.
Q8: What is the downside of lithium batteries?
Higher upfront cost and the need for proper charging profiles, though LiFePO4 batteries offer much longer lifespan.
Q9: Is it safe to leave a lithium battery charging overnight?
Yes, when using a compatible charger and BMS-equipped LiFePO4 battery.
Q10: How long does a 12.8V 200Ah battery last?
With ≥6000 cycles, this battery can last 10+ years in typical solar or backup applications.
Q11: Is wall mounting safe for lithium batteries?
Yes. This wall mounted LiFePO4 battery is designed specifically for safe vertical installation.
Q12: How much does a lithium battery cost per kWh?
Cost varies by cell brand, BMS features, and enclosure. BYD-cell batteries typically command a premium due to quality.
Q13: Is it better to have more solar panels or more batteries?
Solar panels generate energy; batteries store it. A balanced system usually delivers the best performance.
Q14: Can this battery work with solar inverters?
Yes. It is compatible with most solar and hybrid inverters supporting 12V lithium batteries.
Q15: How do I calculate battery size for my system?
Add up daily energy usage (Wh) and divide by battery capacity. One 2.5 kWh battery covers roughly 2.5 kWh per day.
Q16: Is LiFePO4 safer than other lithium batteries?
Yes. LiFePO4 chemistry is known for excellent thermal stability and safety.
Q17: What affects 12.8V 200Ah LiFePO4 battery price?
Cell brand, cycle life, BMS features, certifications, enclosure design, and order quantity all influence pricing.
