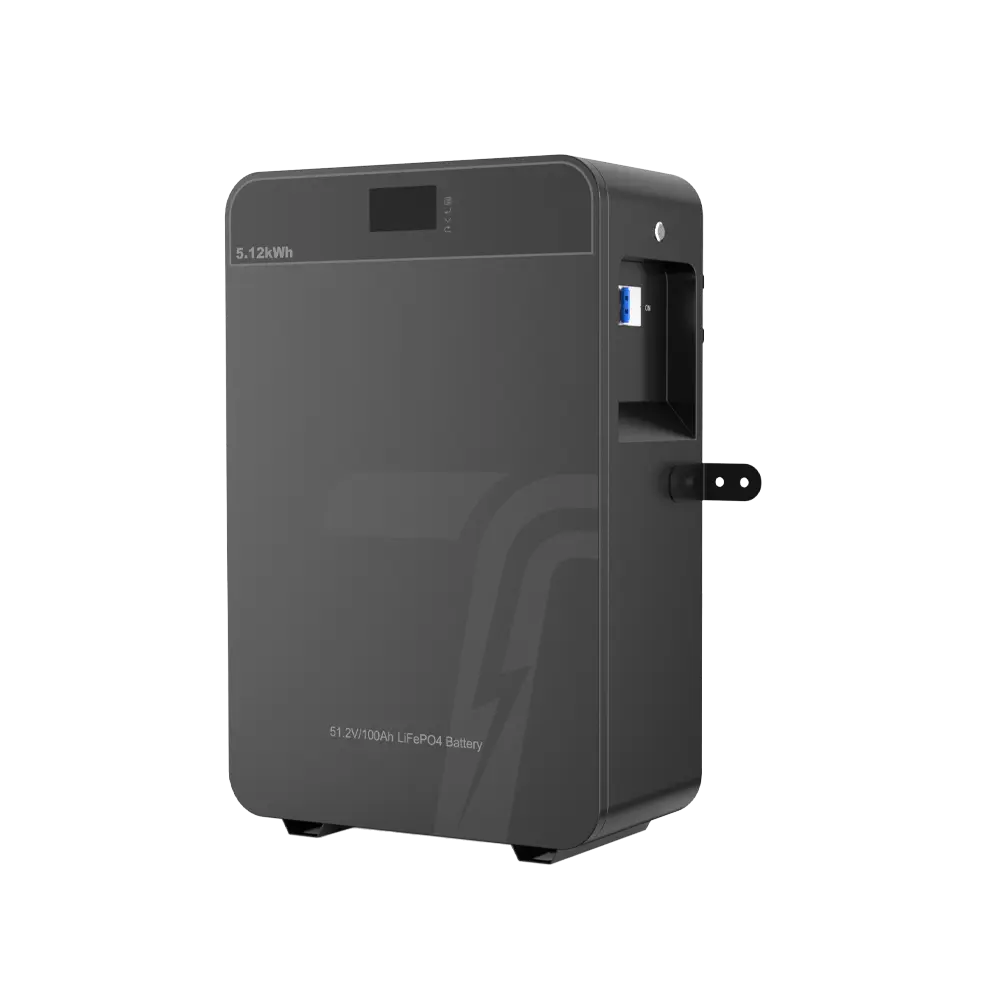

48V100Ah LiFePO4 5.22kWh Home Backup Battery
48V 100Ah LiFePO4 Home Backup Battery is a wall-mounted lithium energy storage solution designed for residential backup power, solar energy storage, UPS systems, and hybrid home applications.
With 5.22kWh usable energy and a stable 48V architecture, it delivers higher system efficiency, reduced current loss, and improved inverter compatibility compared to low-voltage systems.
This lithium 48V 100Ah LiFePO4 battery is engineered for long service life, system scalability, and professional OEM & ODM deployment.
Get an up-to-date quote with additional free information to download!
Why 48V Architecture Matters
Compared with low-voltage systems, a 48V 100Ah LiFePO4 battery pack offers:
This makes it suitable as a replacement 48V 100Ah LiFePO4 battery in existing solar, UPS, or standby installations.
Key Performance Advantages
Fast Installation & Space-Saving Design
Wall-mounted installation reduces floor space usage and significantly shortens installation time, enabling rapid deployment for residential and project-based systems.
Long Cycle Life with LiFePO4 Chemistry
Built with premium LiFePO4 cells, the battery delivers over 6,000 charge and discharge cycles, making it ideal for daily cycling and long-term standby operation.
Parallel Scalability
Supports up to 6 units connected in parallel, allowing system capacity to expand beyond 30kWh, depending on configuration.
Broad System Compatibility
Designed for use with: Power inverters
、Household battery chargers、Solar charge controllers、Backup generators. Ensuring compatibility with 99.99% of mainstream energy storage devices.
Integrated Battery Management System (BMS)
These protections allow the battery to operate reliably in UPS batteries, standby systems, and generator-supported power setups.
Mechanical & Design Overview
- Installation: Wall-mounted
- Enclosure: Metal housing
- Protection: Waterproof & dustproof
- Application: Indoor / Outdoor (protected installation recommended)
- Custom Colors & Dimensions: Available upon request
Application Scenarios
Residential Backup Power
Provides stable and quiet energy during grid outages, supporting essential household loads.
Solar Energy Storage Systems
Works seamlessly with power inverters and solar chargers, storing daytime solar energy for night-time or emergency use.
Hybrid & Off-Grid Systems
Suitable for hybrid systems combining solar, grid, and generators for homes, cabins, and remote installations.
Rural Solar Systems
Ideal for installing solar power systems in rural areas, islands, and remote regions without grid access but with ample sunlight.
UPS & Standby Power
Widely used as UPS batteries with 48V 100Ah LiFePO4 battery configurations, ensuring uninterrupted power for critical equipment.
Marine & Mobile Power Systems
Adaptable for marine battery systems and mobile energy setups requiring reliable 48V lithium storage.
Core Advantages
Deep OEM & ODM Customization
As a direct manufacturer, we support deep customization, including:
Ideal for partners launching new 48V 100Ah LiFePO4 battery products under private labels.
Parameters
| Name | Home Battery Backup |
| Voltage | 51.2V |
| Capacity | 102Ah |
| Battery Type | BYD LiFePO4 Battery |
| Material | Sheet Metal |
| Lifespan | 6000+ |
| Parallel Support | 6 units in parallel |
| Warranty | 5 Year |
| Weight | 43.9Kg |
| Dimensions | 690×490×410mm |
| Certificates |  |
Certificate
About us
A decade of energy storage manufacturing excellence.
Residential Solar Energy Storage Battery Solution Manufacturer
TURSAN is a high-tech enterprise integrating R&D, manufacturing, and global sales of lithium battery–based energy storage systems. Founded in 2016, we operate a 20,000+m² production facility producing reliable LiFePO4 power solutions for residential, commercial, and outdoor applications.
Through a strategic partnership with BYD, we co-manufacture larger-capacity, safer, and more environmentally friendly portable power stations and home battery backups. Today we serve global brand owners, distributors, EPC contractors, and project developers in over 60 countries — saving OEM clients up to 20% in annual sourcing cost while meeting the toughest international safety standards.
OEM&ODM Process
Confirm Requirements and Finalise the Solution
We collect all customer specifications: voltage, capacity, dimensions, communication protocol, etc. Then we decide if it is a pure OEM job (build exactly to your drawings) or an ODM job (we provide the design). We issue a clear BOM (bill of materials) and 2D/3D drawings for both parties to sign off, avoiding any later misunderstandings.
Procurement and Incoming Inspection
We purchase all materials according to the BOM: cells, enclosure, brackets, screws, wiring, BMS boards, etc. When goods arrive, we do sampling or 100% inspection. For cells, we measure voltage, internal resistance and check appearance. For structural parts, we check dimensions and hole sizes. Any non‑conforming items are rejected and never go into our warehouse.
Cell Sorting and Matching
We group cells from the same batch by voltage and internal resistance values. We then match cells with the closest parameters into one set (for example, if a string uses 4 cells, the voltage and resistance differences among those 4 must stay within our set limits). This directly affects how long the battery pack will last without performance decay.
Laser Welding and Module Assembly
We fix cells into holders, then laser‑weld the tabs (connectors). We do pull‑force tests on sample weld spots to check strength. After that, we fasten the welded sub‑modules into the enclosure or tray, using torque‑controlled tools to apply the correct tightening force.
BMS Installation and Wiring Connection
We mount the main BMS and slave boards in their designated positions, then plug in all voltage sampling wires and temperature sensors. We always have a two‑person verification of the wiring sequence – this prevents reverse connections that could burn the boards when we power up.
First High‑Voltage Safety Test
We apply high voltage between the positive/negative terminals and the enclosure to measure insulation resistance and withstand voltage. We check for any leakage or breakdown. If this test fails, the module goes back for rework immediately – it does not move forward.
High‑Temperature Standing and Self‑Discharge (K‑Value) Check
We place the modules in a 45 °C room for 24–48 hours. We measure voltage before and after the standing period, then calculate the daily voltage drop (K‑value). Units with excessive drop are rejected because they indicate internal micro‑shorts that could cause early failure later.
Charge/Discharge Aging and Capacity Calibration
We connect the modules to charge/discharge equipment and run several full cycles at the current specified by the customer. During the process, we record actual discharge capacity, charge/discharge efficiency, and the temperature/voltage differences among individual cells. If all data stay within our acceptance limits, we calibrate the final rated capacity. If not, we isolate and analyse the failed units.
Final Inspection, Labelling and Packaging
We re‑measure total voltage, internal resistance and insulation performance. We check appearance for scratches, gaps, or damaged screws. We attach a permanent nameplate (with serial number), UN38.3 hazardous‑goods label, and all required operation warning labels. Then we package the battery with foam or cardboard for shock protection, as per customer requirements, and record the final weight.
Shipment and Document Handover
We verify the shipping quantity, address and consignee. We prepare all accompanying documents: factory test report, MSDS, UN38.3 test summary, and transport condition certificate. We arrange pickup with our logistics partner, and after dispatch we send the tracking number and estimated arrival time to the customer.
Quality Control
Frequently Asked Questions (FAQ)
Q1: Is this a rechargeable battery?
Yes. It is a fully rechargeable 48V 100Ah LiFePO4 battery, compatible with solar chargers, generators, and standard charging systems.
Q2: Can multiple batteries be connected together?
Yes. Up to 6 units can be connected in parallel to expand total system capacity.
Q3: Is this battery suitable for UPS systems?
Yes. It is commonly used in UPS batteries and standby power systems requiring high reliability and long cycle life.
Q4: Can it replace an existing 48V battery system?
Yes. It can be used as a replacement 48V 100Ah LiFePO4 battery, provided inverter and system specifications match.
Q5: Is outdoor installation supported?
Yes. The battery enclosure is waterproof and dustproof, suitable for outdoor wall-mounted installation in sheltered locations.
Q6: Do you support OEM or private labeling?
Yes. OEM & ODM services are available, including branding, enclosure color, and system configuration.
