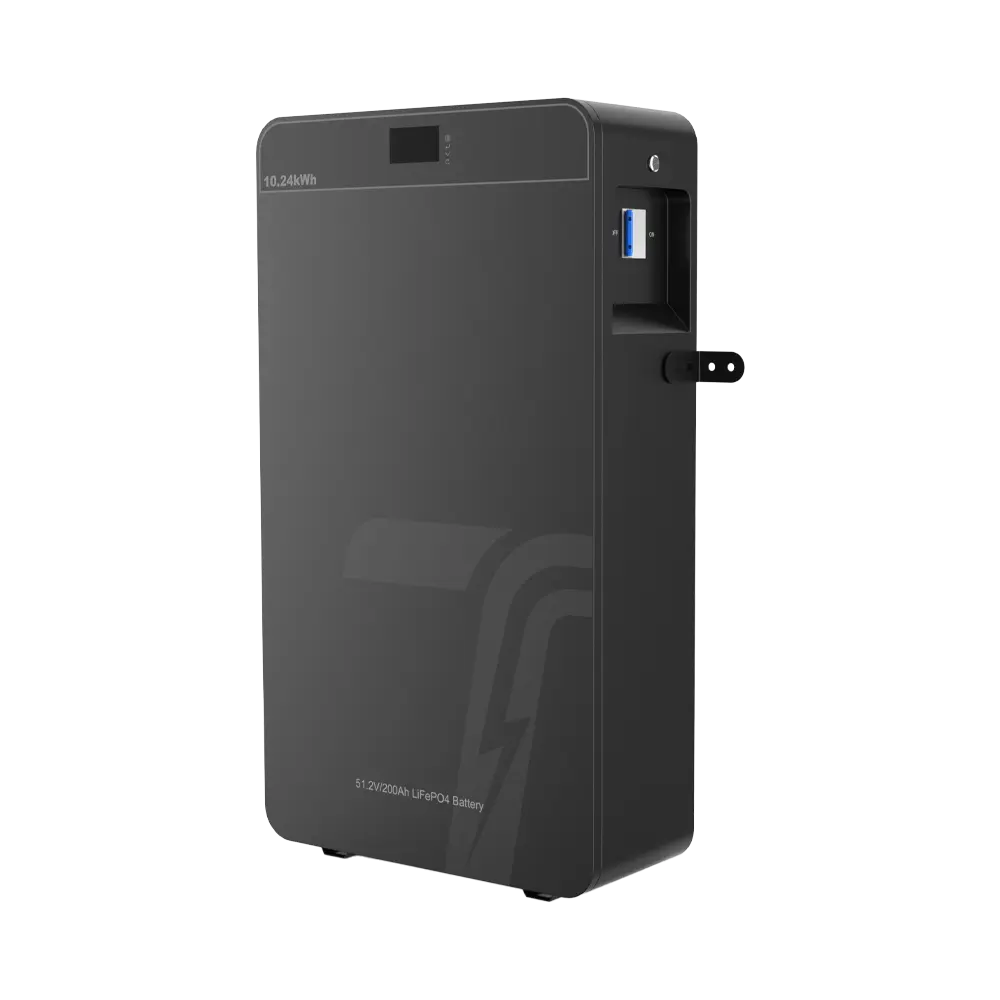

48V200Ah LiFePO4 10.44kWh Home Backup Battery
48V 200Ah Home Backup Battery is a high-capacity LiFePO4 energy storage unit designed for residential backup power, solar battery systems, UPS/standby power, and hybrid energy installations. With 10.44kWh usable capacity in a wall-mounted form factor, it supports higher-load households and longer runtime requirements—while keeping installation clean, safe, and scalable.
This lithium 48V 200Ah backup solution is engineered for professional deployment and long service life, making it an ideal option for installers, distributors, and project integrators who need a reliable 10kWh battery backup building block.
Get an up-to-date quote with additional free information to download!
Designed for Real-World System Integration
This battery is built to function as a system-ready energy module, supporting:
It can also serve as a replacement 51.2V 200Ah battery in existing wall-mounted or cabinet-based storage systems (spec matching required).
Safety & Control: Built-In Smart BMS
This makes the battery suitable for standby 48V backup installations where safety and uptime are non-negotiable.
Why This 10kWh Battery Works Better in the Field
Faster Installation, Cleaner Projects
Wall-mounted design reduces floor footprint and speeds up technician workflows—helping teams finish installs faster and reduce on-site labor.
Long-Life LiFePO4 Chemistry
A true rechargeable 51.2V 200Ah battery platform with 6000+ cycles, designed for daily cycling and long-term standby use.
Parallel Expansion Up to 6 Units
Scale from 10.44kWh to 60kWh+ by connecting up to six units in parallel—ideal for larger homes, multi-load backup, or extended runtime solar storage.
High Device Compatibility
Engineered to work with 99.99% of mainstream energy storage devices in the market, especially common inverter architectures (final compatibility depends on inverter protocol and system design).
Application Scenarios
Home Backup Power
Designed for essential household loads during outages—supporting longer runtime than smaller capacity batteries.
Solar Battery Storage
A strong fit for solar energy storage systems, pairing with power inverters to store solar generation for evening use and grid independence.
Hybrid Solar + Generator Systems
Works in systems where generators provide backup charging—ideal for remote properties and unstable grids (generators 48V 200Ah backup setups).
Rural Solar Systems
Ideal for installing solar power systems in rural areas, islands, and remote regions without grid access but with ample sunlight.
UPS & Standby Power
Commonly deployed as UPS 48V 200Ah backup for routers, security systems, server rooms, and critical circuits.
Marine & Mobile Power
Can be adapted to marine and mobile architectures where 48V battery storage is required (marine batteries 48V 200Ah backup applications depend on system design and mounting environment).
Core Advantages
Deep OEM & ODM Customization
As a direct manufacturer, we provide:
Parameters
| Name | Home Battery Backup |
| Voltage | 51.2V |
| Capacity | 204Ah |
| Battery Type | BYD LiFePO4 Battery |
| Material | Sheet Metal |
| Lifespan | 6000+ |
| Parallel Support | 6 units in parallel |
| Warranty | 5 Year |
| Weight | 89.34Kg |
| Dimensions | 940×578×410mm |
| Certificates |  |
Certificate
About us
A decade of energy storage manufacturing excellence.
Residential Solar Energy Storage Battery Solution Manufacturer
TURSAN is a high-tech enterprise integrating R&D, manufacturing, and global sales of lithium battery–based energy storage systems. Founded in 2016, we operate a 20,000+m² production facility producing reliable LiFePO4 power solutions for residential, commercial, and outdoor applications.
Through a strategic partnership with BYD, we co-manufacture larger-capacity, safer, and more environmentally friendly portable power stations and home battery backups. Today we serve global brand owners, distributors, EPC contractors, and project developers in over 60 countries — saving OEM clients up to 20% in annual sourcing cost while meeting the toughest international safety standards.
OEM&ODM Process
Confirm Requirements and Finalise the Solution
We collect all customer specifications: voltage, capacity, dimensions, communication protocol, etc. Then we decide if it is a pure OEM job (build exactly to your drawings) or an ODM job (we provide the design). We issue a clear BOM (bill of materials) and 2D/3D drawings for both parties to sign off, avoiding any later misunderstandings.
Procurement and Incoming Inspection
We purchase all materials according to the BOM: cells, enclosure, brackets, screws, wiring, BMS boards, etc. When goods arrive, we do sampling or 100% inspection. For cells, we measure voltage, internal resistance and check appearance. For structural parts, we check dimensions and hole sizes. Any non‑conforming items are rejected and never go into our warehouse.
Cell Sorting and Matching
We group cells from the same batch by voltage and internal resistance values. We then match cells with the closest parameters into one set (for example, if a string uses 4 cells, the voltage and resistance differences among those 4 must stay within our set limits). This directly affects how long the battery pack will last without performance decay.
Laser Welding and Module Assembly
We fix cells into holders, then laser‑weld the tabs (connectors). We do pull‑force tests on sample weld spots to check strength. After that, we fasten the welded sub‑modules into the enclosure or tray, using torque‑controlled tools to apply the correct tightening force.
BMS Installation and Wiring Connection
We mount the main BMS and slave boards in their designated positions, then plug in all voltage sampling wires and temperature sensors. We always have a two‑person verification of the wiring sequence – this prevents reverse connections that could burn the boards when we power up.
First High‑Voltage Safety Test
We apply high voltage between the positive/negative terminals and the enclosure to measure insulation resistance and withstand voltage. We check for any leakage or breakdown. If this test fails, the module goes back for rework immediately – it does not move forward.
High‑Temperature Standing and Self‑Discharge (K‑Value) Check
We place the modules in a 45 °C room for 24–48 hours. We measure voltage before and after the standing period, then calculate the daily voltage drop (K‑value). Units with excessive drop are rejected because they indicate internal micro‑shorts that could cause early failure later.
Charge/Discharge Aging and Capacity Calibration
We connect the modules to charge/discharge equipment and run several full cycles at the current specified by the customer. During the process, we record actual discharge capacity, charge/discharge efficiency, and the temperature/voltage differences among individual cells. If all data stay within our acceptance limits, we calibrate the final rated capacity. If not, we isolate and analyse the failed units.
Final Inspection, Labelling and Packaging
We re‑measure total voltage, internal resistance and insulation performance. We check appearance for scratches, gaps, or damaged screws. We attach a permanent nameplate (with serial number), UN38.3 hazardous‑goods label, and all required operation warning labels. Then we package the battery with foam or cardboard for shock protection, as per customer requirements, and record the final weight.
Shipment and Document Handover
We verify the shipping quantity, address and consignee. We prepare all accompanying documents: factory test report, MSDS, UN38.3 test summary, and transport condition certificate. We arrange pickup with our logistics partner, and after dispatch we send the tracking number and estimated arrival time to the customer.
Quality Control
Frequently Asked Questions (FAQ)
Q1: Is this a 48V or 51.2V battery?
It is a 51.2V nominal battery (commonly referred to as 48V-class in energy storage systems). This is standard for LiFePO4 48V platforms.
Q2: Can I connect multiple units together?
Yes. It supports up to 6 units in parallel, allowing flexible expansion for higher energy demand.
Q3: Is it suitable for solar battery storage systems?
Yes. It is designed to work with power inverters and is commonly used as a 10kWh solar battery module in residential PV storage projects.
Q4: Does it work with generators?
Yes. It can be integrated into hybrid systems where generators support backup charging (generators 48V 200Ah backup configuration depends on inverter/charger settings).
Q5: What safety protections are included?
An advanced built-in BMS provides overcurrent, over-discharge, low power, high/low temperature, overload, short-circuit, and disconnection protection.
Q6: Is outdoor wall mounting supported?
Yes. The enclosure is waterproof and dustproof and supports outdoor wall mounting. A sheltered location is recommended for best long-term durability.
Q7: Do you offer OEM & ODM customization?
Yes. OEM & ODM programs include branding, color options, packaging, and configuration support for project requirements.
