2. 這個系統的總可用能量是多少？

The battery stores 16.07kWh total energy. With LiFePO₄ chemistry and built‑in BMS protection, you can safely use over 90% (≈14.5kWh) per cycle without damaging battery life.

2. 我可以用 6kW 逆變器來運轉空調或水泵嗎？

Yes. The inverter delivers 6000W continuous and 12,000VA peak (surge) for up to 10 seconds. This can start most 2‑3HP air conditioners, refrigerators, compressors, and submersible pumps.

3. 系統在沒有太陽能板的情況下是否可以運作？

Yes. The AC input accepts 90‑280Vac from the grid or a generator. You can use it as a battery backup system (UPS‑like) and charge purely from AC power.

4. 當電網失效時，UPS轉換速度有多快？

Typical transfer time is <10ms (milliseconds). This is fast enough to keep computers, routers, and sensitive electronics running without interruption.

5. 我可以連接哪些太陽能電板規格？

Max PV open circuit voltage: 500VdcMPPT operating range: 120‑450VdcMin activation voltage: only 80VMax MPPT power: 9000WMax charging current: 120AYou can connect most standard monocrystalline/polycrystalline panels in series. Example: 12× 450W panels (5400W) works well.

6. 我可以再接更多電池以增加容量嗎？

Yes. Multiple identical units can be paralleled via CAN/RS485 communication to increase total energy and power output. Contact us for parallel configuration details and required accessories.

7. 我該如何遠端監控系統？

Built‑in WiFi allows connection to a free mobile APP (iOS/Android). You can view real‑time battery SOC, PV input, AC output, history, and receive fault alerts. Local monitoring is also available via LCD touch screen.

8. 循環壽命與保固為何？

Cycle life: ≥6000 cycles at 25°C, 0.5C, 70% SOH (end of life)Standard warranty: 5 years (extendable)The battery is based on Grade A LiFePO₄ cells (BYD cell platform). Under normal daily cycling, 6000 cycles equals about 16 years of service.

第 9 點：有哪些通信協議可供整合？

The BMS and inverter support CAN, RS485, USB, and WiFi. These allow integration with home energy management systems, generators, or third‑party monitoring platforms.

10. 我可以把柴油發電機當作備援輸入嗎？

Absolutely. AC input accepts 90‑280Vac, 50/60Hz. You can set the charging current from 2A to 120A via LCD or APP to match your generator’s rated power. The system can automatically start the generator (with external ATS or generator auto‑start signal).

11. 安裝要求有哪些？

Dimensions: 580×580×643 mmWeight: ≤138.5 kgIP20 rating – indoor use only (garage, utility room, basement)Ambient temperature: -10°C to +60°CMax altitude: 4000m (derating above 1000m)We recommend professional installation by a certified electrician. Wall mounting optional, floor standing recommended.

12. 我是經銷商/品牌所有者。我可以使用我的商標取得此產品嗎？

Yes. We are an OEM/ODM factory. Customization options include: enclosure logo, LCD boot screen, packaging, user manual, and even white‑label mobile app. MOQ starts at 50 units. Sample orders available.

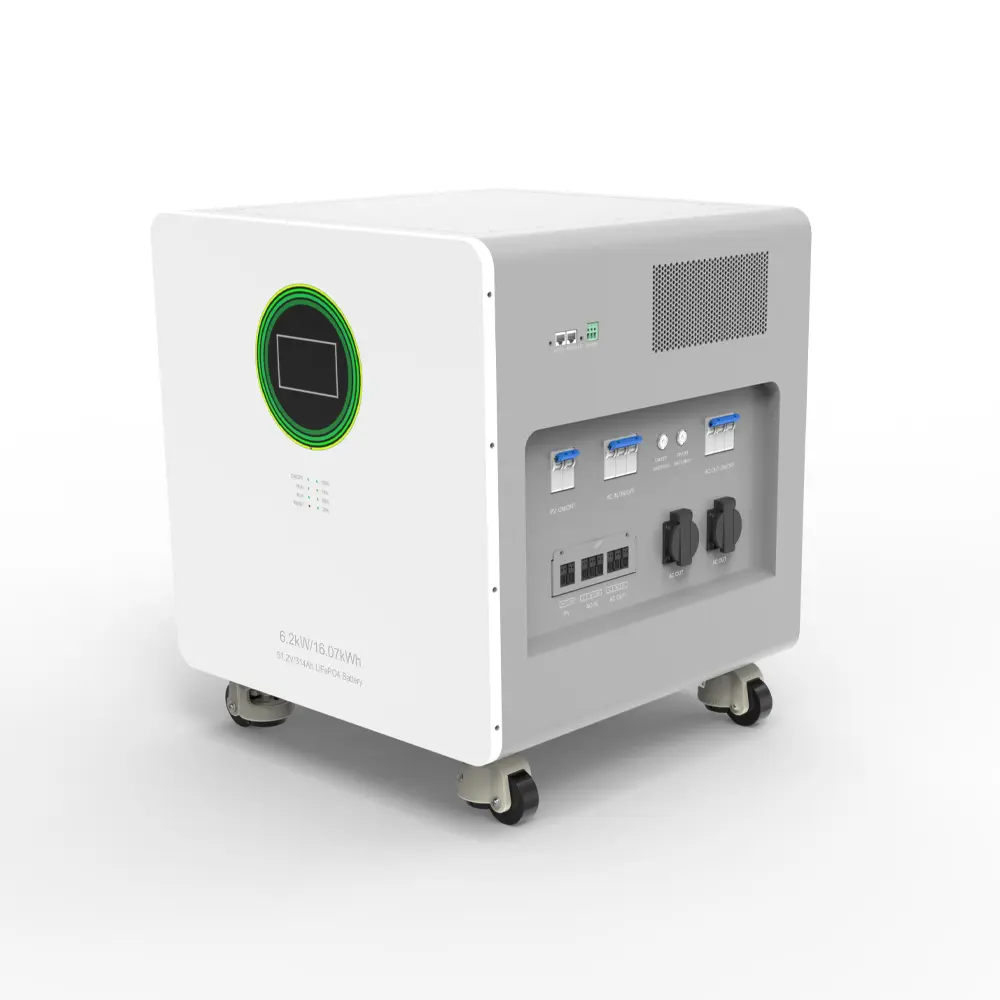

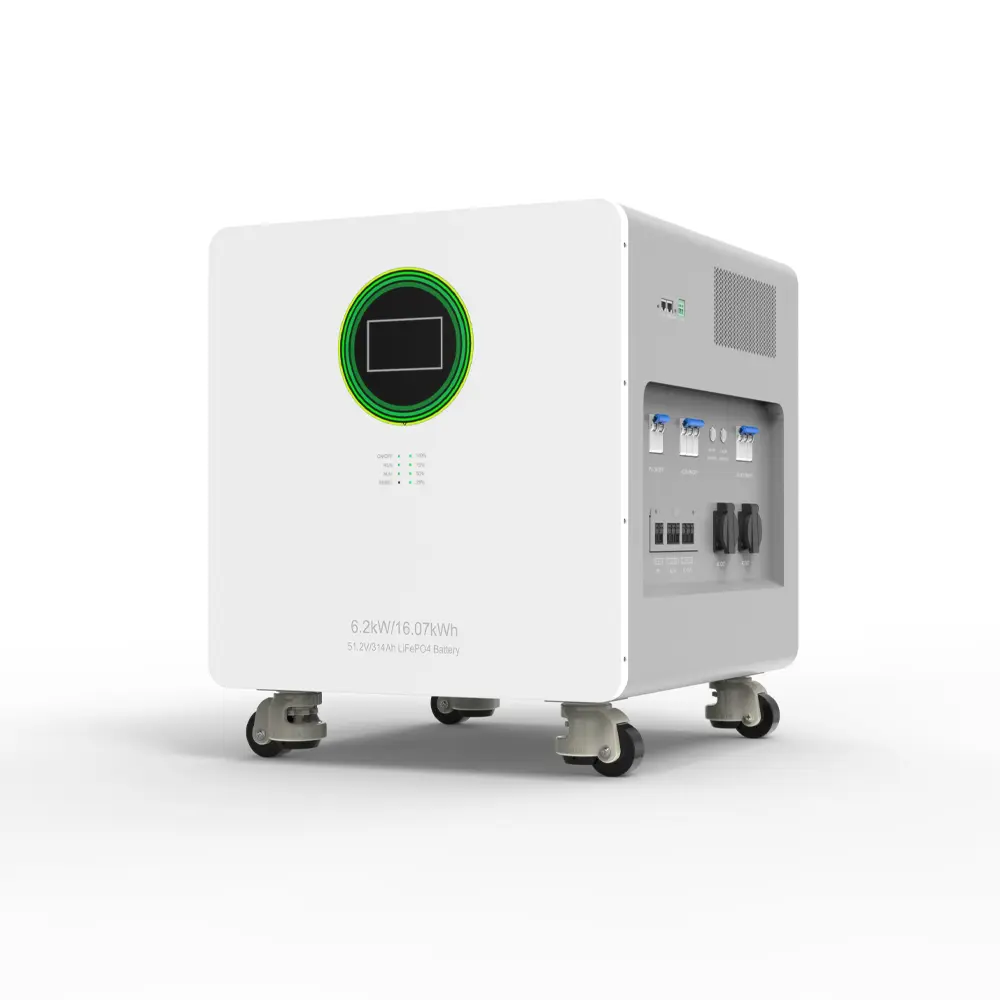

6kW 16.07kWh Off-Grid Home Energy Storage | 51.2V 314Ah LiFePO4 Battery with WiFi BMS

Q: 5. 我可以連接哪些太陽能電板規格？

Max PV open circuit voltage: 500VdcMPPT operating range: 120‑450VdcMin activation voltage: only 80VMax MPPT power: 9000WMax charging current: 120AYou can connect most standard monocrystalline/polycrystalline panels in series. Example: 12× 450W panels (5400W) works well.

Q: 6. 我可以再接更多電池以增加容量嗎？

Yes. Multiple identical units can be paralleled via CAN/RS485 communication to increase total energy and power output. Contact us for parallel configuration details and required accessories.

Q: 7. 我該如何遠端監控系統？

Built‑in WiFi allows connection to a free mobile APP (iOS/Android). You can view real‑time battery SOC, PV input, AC output, history, and receive fault alerts. Local monitoring is also available via LCD touch screen.

Q: 8. 循環壽命與保固為何？

Cycle life: ≥6000 cycles at 25°C, 0.5C, 70% SOH (end of life)Standard warranty: 5 years (extendable)The battery is based on Grade A LiFePO₄ cells (BYD cell platform). Under normal daily cycling, 6000 cycles equals about 16 years of service.

Q: 第 9 點：有哪些通信協議可供整合？

The BMS and inverter support CAN, RS485, USB, and WiFi. These allow integration with home energy management systems, generators, or third‑party monitoring platforms.

Q: 10. 我可以把柴油發電機當作備援輸入嗎？

Absolutely. AC input accepts 90‑280Vac, 50/60Hz. You can set the charging current from 2A to 120A via LCD or APP to match your generator’s rated power. The system can automatically start the generator (with external ATS or generator auto‑start signal).

Van Life Power Station Manufacturer | OEM Portable Power for Vans — TURSAN

TURSAN supplies LiFePO4 portable power stations for van life, camper vans, RV builders, and van

戶外活動用發電機 | 靜音電池式電力站供應商 — TURSAN

戶外活動、婚禮、市集、攤販、DJ 環境的安靜電池發電機。鋰鐵磷酸鹽（LiFePO4）

Emergency Backup Generator | LiFePO4 Battery Power Station Supplier — TURSAN

家用停電情況下的電池動力應急備用發電機、醫療設備、電信、庇護所與災難救援。LiFePO4，,

微電網儲能係統 — TURSAN | 工業電池儲能係統製造商

TURSAN 微电网能源存储系统 — 面向岛屿与并网微电网的工业级 LiFePO4 BESS。容量范围 5kWh–307kWh

TURSAN 房車及廂型車生活電源系統 | OEM/ODM 離網電源解決方案

为房车、货车和专用车辆提供可靠的离网电力。TURSAN 提供抗振动 LiFePO4 电池，一体化解决方案

商餐車電池系統 | OEM/ODM 電源解決方案 | TURSAN

为8–14小时商业服务而设计的重型太阳能发电机与电池组。UL & CE 认证

名目電壓/容量	51.2V/314Ah
總能量	16.07kWh
額定/標稱放電容量	≥314Ah
充電截止電壓	56~58.4V
標準充電/放電電流	150A
循環壽命	≥ 6000 次循環，70% SOH，25°C
類型	離網
輸入電壓範圍	90~280VAC
輸出功率	6千瓦
輸出電壓/頻率	230VAC，50/60Hz±0.1%
最大開放電路電壓	500V直流
MPPT 最大功率	9000W（效率 99.5%）
展示	LCD
溝通	USB、RS485
工作溫度	-10°C ~ 60°C
展示	LCD
溝通	CAN、RS485、WiFi
工作溫度	-10°C ~ 60°C
方面	580×580×643 mm
重量	≤ 138.5 kg

移動電動車充電

30千瓦 30千瓦時

60千瓦 60千瓦時

120千瓦 120千瓦時

200千瓦 200度

6kW 16.07kWh Off-Grid Home Energy Storage | 51.2V 314Ah LiFePO4 Battery with WiFi BMS

獲取最新報價以及可供下載的額外免費資訊！

主要亮點

離網和混合太陽能運行

電池管理系統（BMS）保護

核心優勢

快速安裝

智慧電池管理系統

高循環壽命

高階結構

深度客製化（OEM/ODM）

99.99% 設備相容性

應用領域

離網住宅家用

遠端農場與農業設施

小型商業/電信備援電源

參數

證書

批發流程

品質管制

常見問題 (FAQ)
